Strange Weather, Part I
Meteorological data is often collected at large scale; what happens at the architectural scale?
Experiments in architecture and weather, at the human scale.
Architecture has traditionally had a direct relationship with weather: that of keeping it out or accommodating fair weather. But can the weather offer any new and generative directions for architecture?

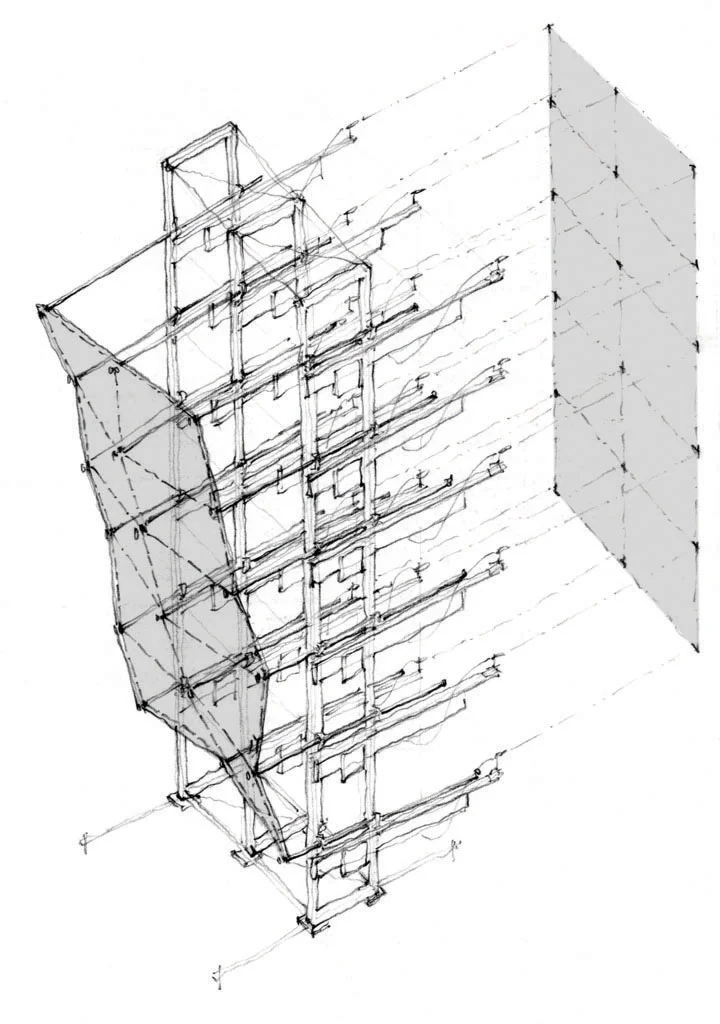

To measure the subtle microclimates present in all spaces, a device carrying a series of thermometers takes instant temperature readings at vertical one-foot intervals. The data is transformed into thermographs--contour drawings of the temperature variations.
A second thermographic device was made to directly translate the temperature readings into visual form. The thermometers, placed in a one-foot grid three wide and six high, are connected to a ruled system of gauges. The discrepancies between the readings produce a physical displacement of the brass pistons. The form that results is a thermally derived landscape: a thermoscape translation from fluctuating micro-climates.

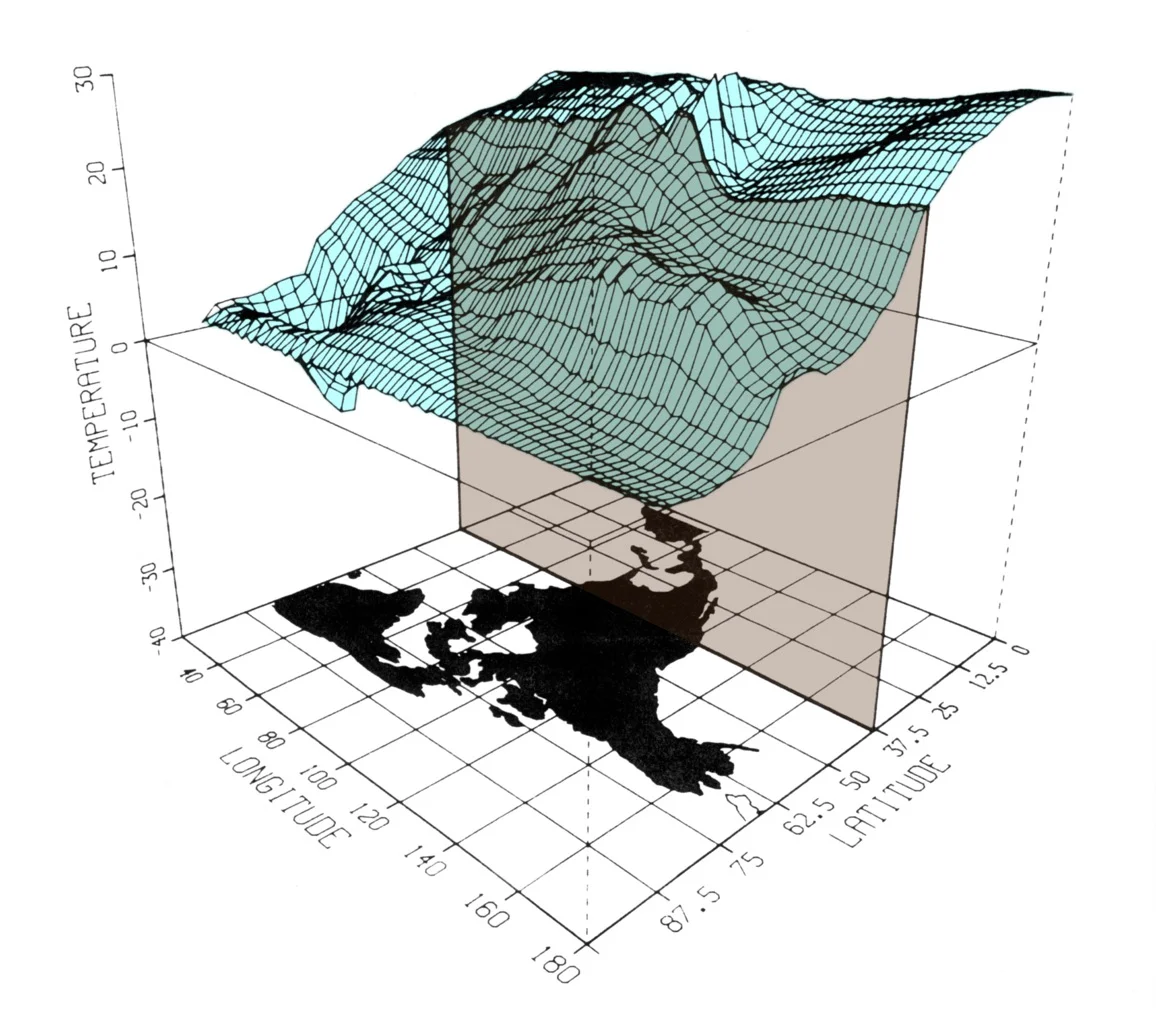

The translation of weather data can be in the form of a contoured landscape for legibility

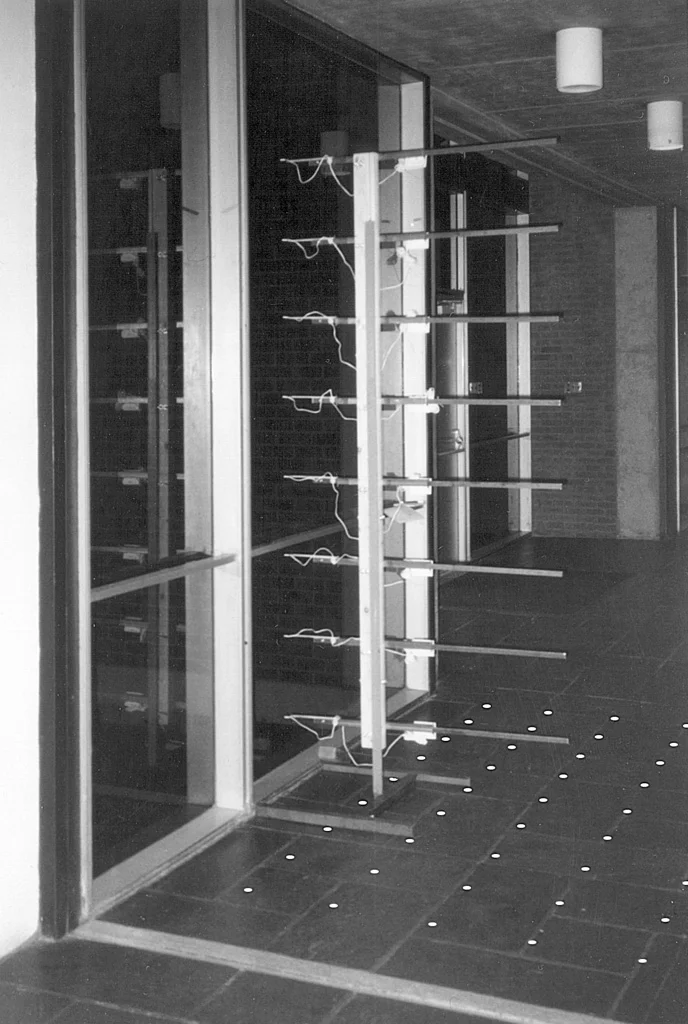

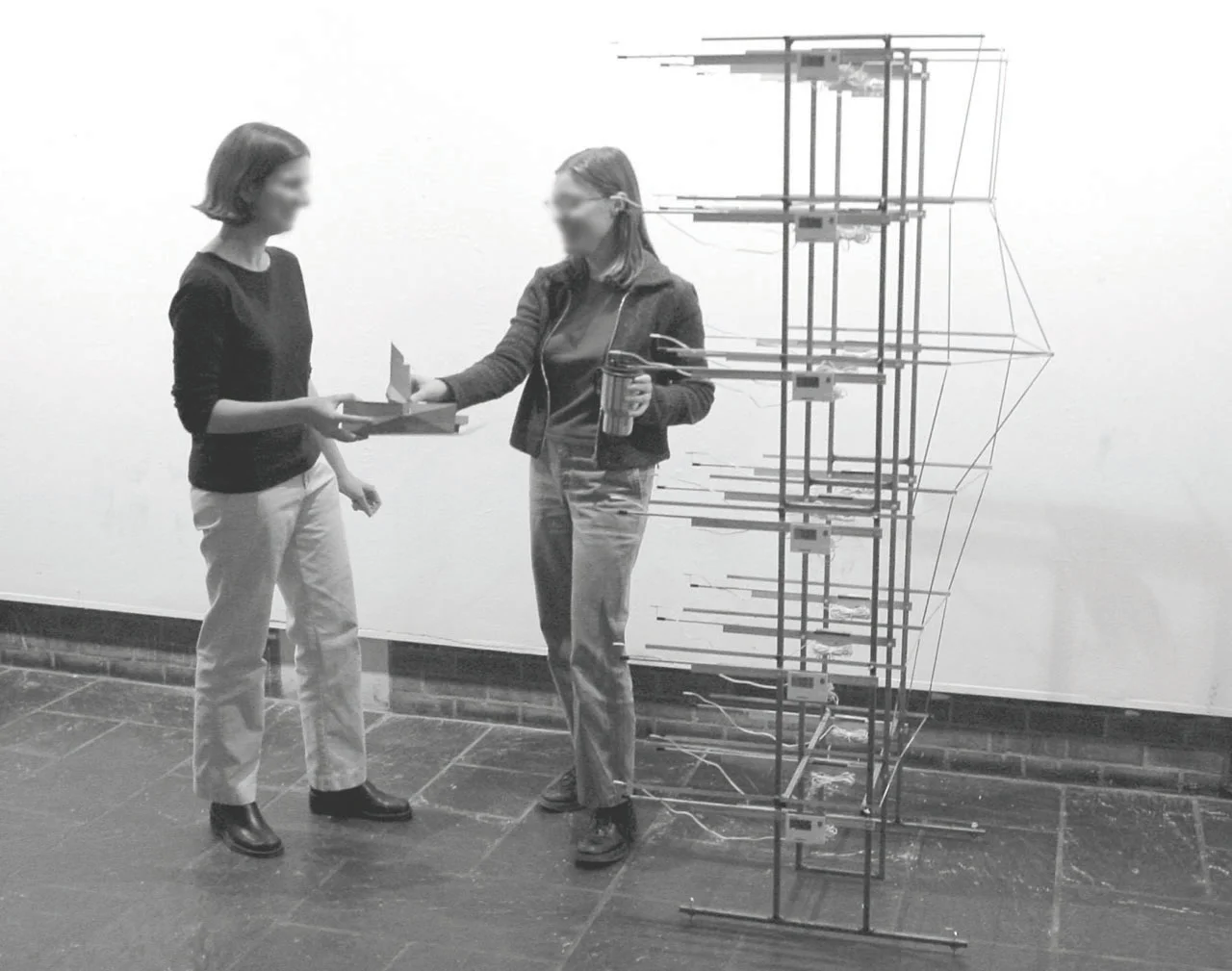

A thermometric device, with eight thermometers at one-foot intervals captures the subtle microclimates of an aluminum and glass enclosure on a cold winter night

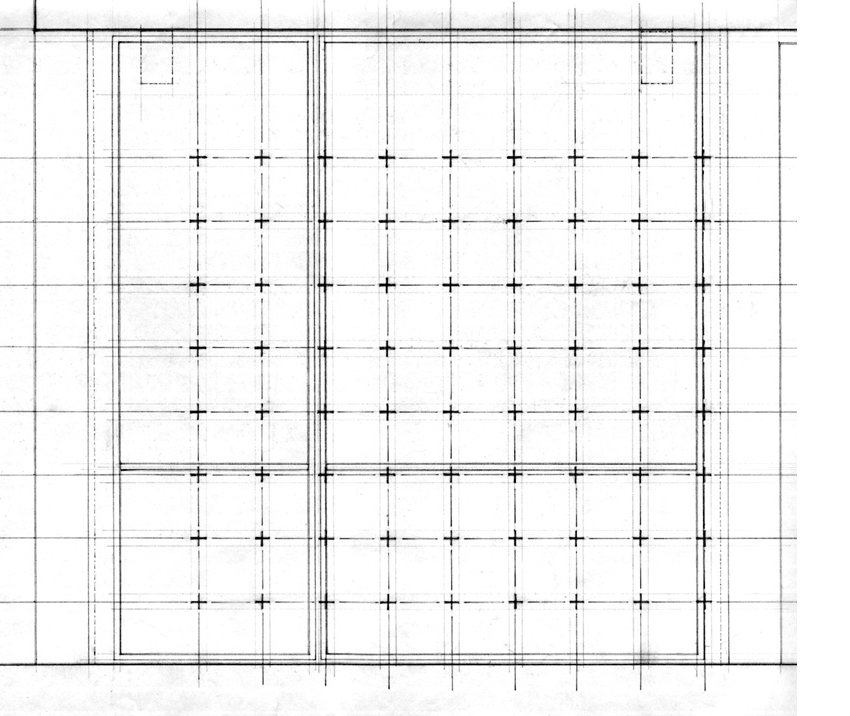

The aluminum and glass enclosure reveals thermal profile of various materials

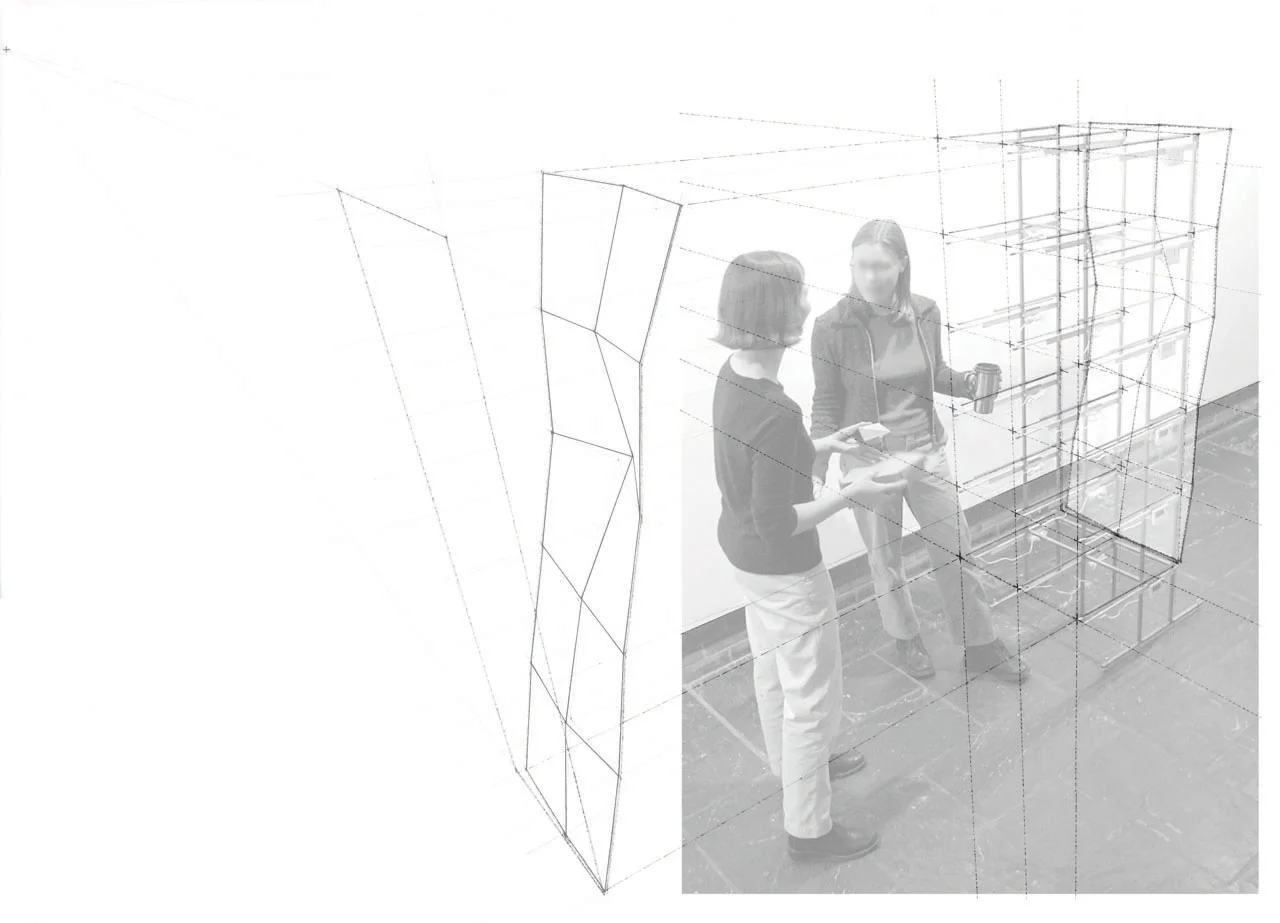

A second thermographic device, with probes laid out on a grid, directly translates temperature discrepancies into a perpetually variable landscape--a direct-read thermoscape

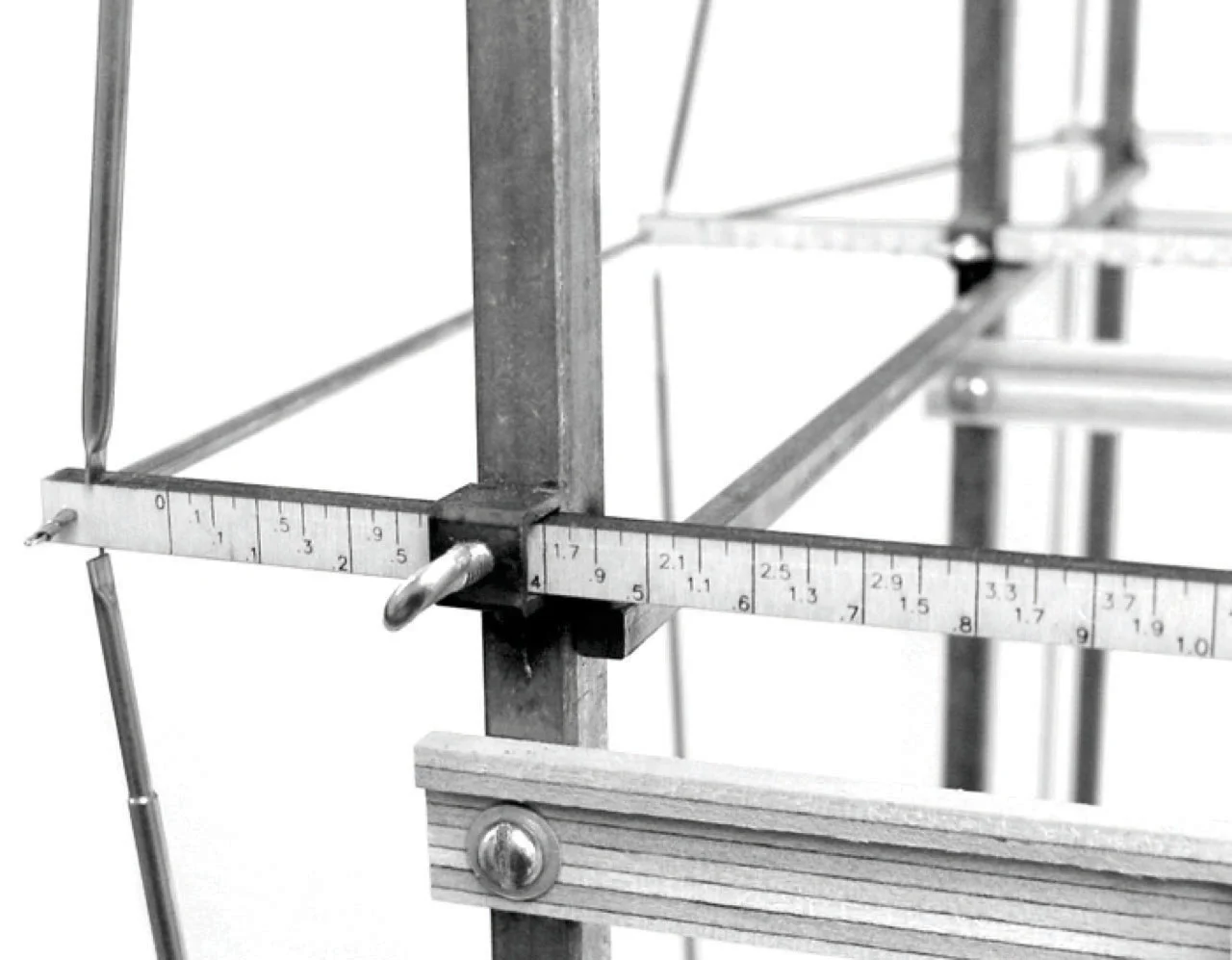

Detail of sliding metric bar with brass pistons

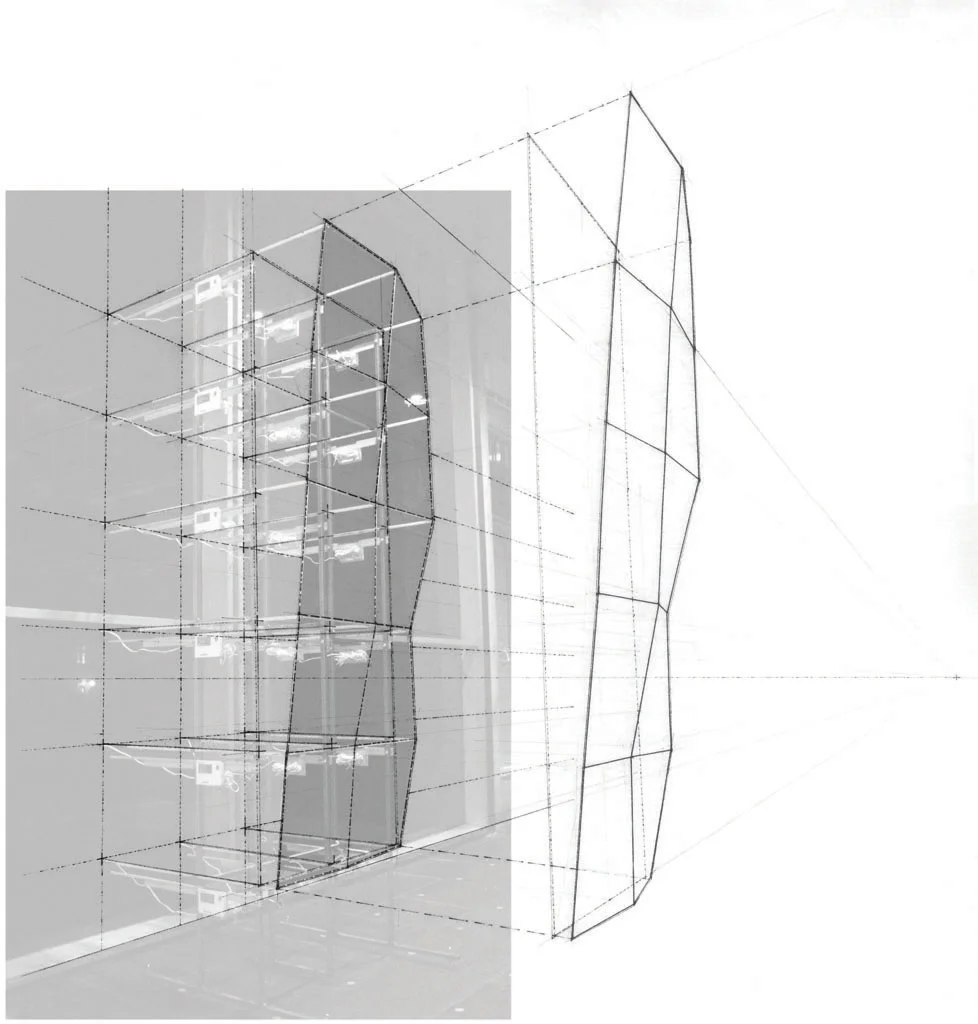

Direct-read thermoscape
